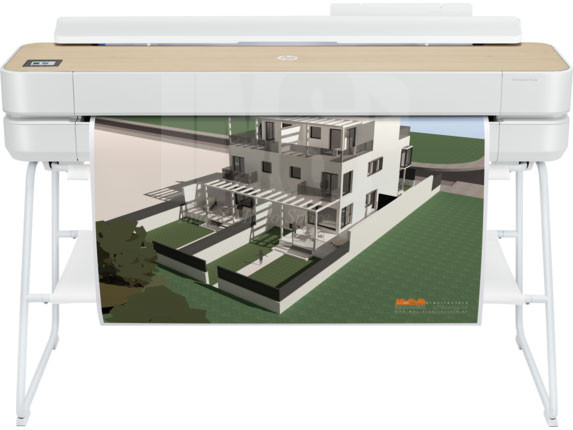

HP DesignJet Studio 36" Wood Large-Format Wireless Plotter Printer (5HB14A)

HP DesignJet Studio Wood 36-Inch Printer | 5HB14A.

 The HP DesignJet Studio printer was designed to stand out, both in looks and performance. Being one of the easiest large format plotters to use and setup helps the HP DesignJet Studio printer fit the way you live and work. With the ability to print multi-size projects automatically, you can guarantee this wide format printer is second to none. Avoid waiting for your prints with high-speeds as fast as 25 seconds per A1 (Arch D) size plots.

Functions: Print

Model size: 36 in

Print speed: 25 sec/page on D, 82 D prints per hour[1]

Print technology: HP Thermal Inkjet

Printer drivers included: Raster driver for Windows and macOS

Print quality color (best): Up to 2400 x 1200 optimized dpi

Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Number of print cartridges: 4 (C, M, Y, K)

Ink types: Dye-based (C, M, Y); pigment-based (K)

Line accuracy: ±0.1%[3]

Maximum optical density (black): 8 L* min/2.10 D[4]

Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11

Memory: 1 GB

Internal Storage: None

Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes standard (sheets, rolls): 11 to 36 in (279 to 914 mm)

Media sizes, custom: Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

Media types:mBond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Roll external diameter: 3.9 in (100 mm)

Media thickness: Up to 11.8 mil

Power: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Energy star certified: Yes

Operating temperature range: 41 to 104ºF (5 to 40ºC)

Minimum dimensions (W x D x H): 51.9 x 21.9 x 36.7 in (1317 x 555 x 932 mm)

Weight: 91.9 lb (41.7)

Package dimensions (W x D x H): 57.9 x 22.6 x 25.4 in (1470 x 575 x 646 mm)

Package weight: 136.7 lb (62 kg)
