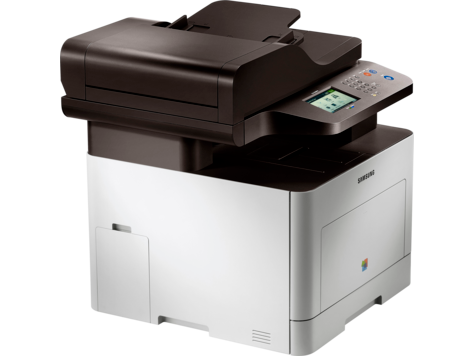

Samsung Color Laser Multifunction Printer (CLX-6260FW)

overviews:

The CLX-6260FW not only delivers brilliant color quality, but can scan, copy and fax for extra convenience. Plus, a fast dual CPU, gigabit network support and instant fusing technology provide enhanced speed and less waiting time.

Functions:

Functions:

Print, copy, scan, fax

Printing specifications:

Print speed black:

Normal: Up to 24 ppm

Print speed color:

Normal:Up to 24 ppm

First page out (ready)

Black: As fast as 15 sec
Color: As fast as 15 sec

First page out (ready)

Black: As fast as 15 sec
Color: As fast as 15 sec

Duty cycle (monthly, A4)

Up to 60,000 pages

Duty cycle (monthly, A4)

Up to 60,000 pages

Print technology:

Laser

Print quality black (best):

Up to 9,600 x 600 dpi

Print quality color (best):

Up to 9,600 x 600 dpi

Print Resolution Technologies:

ReCP

Print languages:

SPL

PCL5

PCL6

PS3

PDF V1.7

Display:

4.3-in Color Touchscreen Panel

Processor speed:

533 MHz

Automatic paper sensor:

No

Security management:

Embedded Web Server: password-protection, secure browsing via SSL/TLS; Network: enable/disable network ports and features, SNMPv1 & SNMPv2 community password change, SNMPv3; Authentication (Local); Autentication (Kerberos/SMB/LDAP); IP/MAC Address Filtering (IPv4/IPv6/MAC); IPSec; 802.1x, authentication via WEP, WPA/WPA2 Personal; encryption via AES or TKIP

Replacement cartridges

Standard Black Toner Cartridge (~2,000 pages) CLT-K506S

Standard Cyan Toner Cartridge (~1,500 pages) CLT-C506S

Standard Yellow Toner Cartridge (~1,500 pages) CLT-Y506S

Magenta Toner Cartridge (~1,500 pages) CLT-M506S

High Black Toner Cartridge (~6,000 pages) CLT-K506L

High Cyan Toner Cartridge (~3,500 pages) CLT-C506L

High Yellow Toner Cartridge (~3,500 pages) CLT-Y506L

High Magenta Toner Cartridge (~3,500 pages) CLT-M506L



Connectivity:

Mobile printing capability

Apple AirPrint™, Wi-Fi direct printing, Mobile Apps, Samsung Cloud Print, Google Cloud Print™, PrinterOn Print

Network capabilities:

Via built-in 10/100/1000Base-TX Ethernet, Gigabit

Auto-crossover Ethernet

authentication via 802.1X

Wireless capability:

Yes, Built in Wi-Fi 802.11 b/g/n

authentication via WEP, WPA/WPA2 Personal, Enterpise

encryption via AES or TKIP

Connectivity, standard:

Hi-Speed USB 2.0 port, Host USB

built-in Fast Ethernet 10/100/1000 Base-TX network port

built-in Wi-Fi 802.11 b/g/n

Minimum system requirements:

Windows® XP (SP3) (32-bit)or newer, 933 MHz processer or higher, 128 MB RAM, 1.5 GB HD space, CD-ROM or Internet, USB or Network connection

OSX 10.4 or newer

Internet

USB or Network connection

1 GB HD space

1 GB RAM

Compatible operating systems:

Windows®: XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 server (32/64 bit), 7 (32/64 bit), 2008 Server R2, 10 (32/64 bit), 2012 Server, 2016 Server

MAC OS 10.4 - 10.11

Linux: Red Hat Enterprise Linux (5, 6, 7), Fedora (15, 16, 17, 18, 19, 20, 21, 22), openSUSE (11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2), Ubuntu (11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10), SUSE Linux Enterprise Desktop (11, 12), Debian (6, 7, 8), Mint (13, 14, 15, 16, 17)

Unix: Sun Solaris 9, 10, 11 (x86, SPARC), HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium), IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (PowerPC)

Memory specifications:

Memory:

512 MB

Maximum memory

1 GB

Internal Storage:

4 GB SD Card

Paper handling:

Paper handling input, standard

50-sheet multipurpose tray

250-sheet input tray

50-sheet Automatic Document Feeder (ADF)

Paper handling output, standard:

150-sheet output bin

Maximum output capacity (sheets):

Up to 150 sheets

Duplex printing:

Automatic (standard)

Media sizes supported:

Tray 1: A4, A5, A6, B5 (JIS), B5 (ISO), Oficio, Envelope DL, Envelope C5, Envelope C6, Postcard

Tray 2: A4, A5, A6, B5 (JIS), B5 (ISO), Oficio, Envelope DL, Envelope C5, Envelope C6, Postcard

Media sizes supported:

Tray 1: Legal, Folio, Letter, Executive, Statement, Envelope Monarch, Envelope No. 10, Envelope No. 9

Tray 2: Legal, Folio, Letter, Executive, Statement, Envelope Monarch, Envelope No. 10, Envelope No. 9

Media sizes, custom:

Tray 1: 3 x 5 to 8.5 x 14 in

Tray 2: 3 x 5 to 8.5 x 14 in

Media sizes, custom:

Tray 1: 76 x 127 to 216 x 356 mm

Tray 2: 76 x 127 to 216 x 356 mm

Media types:

Plain, Thin, Thick, Thicker, Cardstock, Transparency, Pre-printed, Recycled, Archive, Bond, Label, Envelope, Cotton, Colored, Hole Punched, LetterHead, Glossy

Media weight, supported:

Tray 1: 60 to 220 g/m; Tray 2: 60 to 220 g/m²; Automatic duplexer: 60 to 163 g/m

Media weight, supported:

Tray 1: 16 to 59 lb; Tray 2: 16 to 59 lb

Media weights, supported ADF:

60 to 105 g/m

Media weights, supported ADF:

16 to 28 lb

Scanner specifications:

Scanner type:

Flatbed, ADF

Scan file format:

PDF, JPG, TIFF, XPS, PDF/A, Digital Signature in PDF

Scan resolution, optical:

Up to 1,200 dpi (flatbed); Up to 600 dpi (ADF)

Scan size, maximum:

216 x 297 mm

Scan size, maximum:

8.5 x 11.7 in

Scan size (ADF), maximum:

216 x 356 mm

Scan size (ADF), maximum:

8.5 x 14 in

Scan size (ADF), minimum:

145 x 145 mm

Scan size (ADF), minimum:

5.7 x 5.7 in

Scan speed (normal, A4)

Up to 24 ppm (black), up to 24 ppm (color)

Automatic document feeder capacity:

Standard, 50 sheets

Digital sending standard features:

Scan to email; Scan to folder (SMB,FTP); Scan to HDD; Scan to USB drive; WSD Scan; Scan to PC; PC Scan; Scan to Cloud; LDAP Authentication

Scan input modes:

Front-panel scan, copy, email, fax, Samsung Scan software

user application via TWAIN or WIA

Copier specifications:

Copy speed (normal)

Black: Up to 24 cpm

Color: Up to 24 cpm

Copy resolution (black text):

Up to 600 x 600 dpi

Copy resolution (color text and graphics):

Up to 600 x 600 dpi

Copy reduce / enlarge settings:

25 to 400%

Copies, maximum:

Up to 99 copies

Fax specifications:

Faxing:

Yes

Fax transmission speed

33.6 kbps

Power and operating requirements:

Power:

110-volt input voltage: 110 to 127 VAC, 50/60Hz and 220-volt input voltage: 220 to 240 VAC, 50/60Hz

Power consumption

450 watts (Active Printing), 18 watts (Ready), 2.4 watts (Sleep)

Energy efficiency:

ENERGY STAR® qualified

Operating temperature range:

10 to 30°C

Operating temperature range:

50 to 86°F

Recommended operating humidity range:

20 to 70% RH (non-condensing)

Acoustic power emissions (ready)

4.9 B (A)

Acoustic pressure emissions bystander (active, printing)

52 dB (A)
