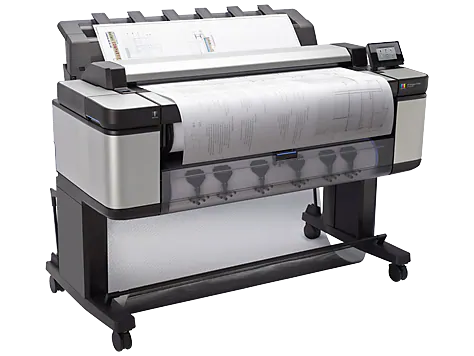

HP DesignJet T3500 36-in Production Multifunction Printer (B9E24A)

specifications:

Model size:

914 mm

Functions:

Print, copy, scan

Memory specifications:

Memory:

128 GB (virtual)

Internal Storage:

Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified)

Technical specifications:

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi

Number of print cartridges:

6 (cyan, gray, magenta, matte black, photo black, yellow)

Ink types:

Dye-based (C

G

M

pK

Y); pigment-based (mK)

Line accuracy:

±0.1%[2]

Maximum optical density (black):

2.15 maximum black optical density (6 L*min)

Scan resolution, hardware:

Up to 600 x 600 dpi

Scan resolution, maximum

Color:600 x 600 dpi

Scan resolution, optical:

Up to 600 dpi

Scanner type:

Sheetfed, CIS (Contact Image Sensor)

Scan size, minimum:

210 x 297 mm

Copy reduce / enlarge settings:

25 to 400% at 1% increment

Copies, maximum:

Up to 99 copies

Paper handling:

Finished output handling:

Input: two automatic front-loading roll feeds, smart roll switching, rolls up to 200 m long each and 180 mm of diameter, sheet feed

Output: integrated output stacker (from A4 to A0, with up to 100 A1-size capacity), media bin, automatic cutter

Scanner: straight-through scan paper path for sheet and cardboard originals

Media types:

Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)

Media sizes, custom:

210 x 279 to 914 x 1219 mm

Media thickness:

Up to 0.5 mm

Connectivity:

HP ePrint capability:

Yes

Printing path:

HP Designjet SmartStream (optional), printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing

Connectivity, standard:

Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, FTP, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100, 9101, 9102), LPD, IPP, WS print, NTLM, NTLM v2, SSL/TLS, 802.1X authentication (WEP, WPA, WPA2, LEAP, PEAP, EAP-TLS)

Print languages:

HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI

Power and operating requirements:

Power consumption:

< 120 watts (printing); < 2 watts / < 7 watts with embedded Digital Front End (sleep); 0 watts (off); 12 Wh per A0 (per print)

Energy efficiency:

ENERGY STAR® qualified, EPEAT® Bronze

Operating temperature range:

5 to 40°C

Operating humidity range:

20 to 80% RH
