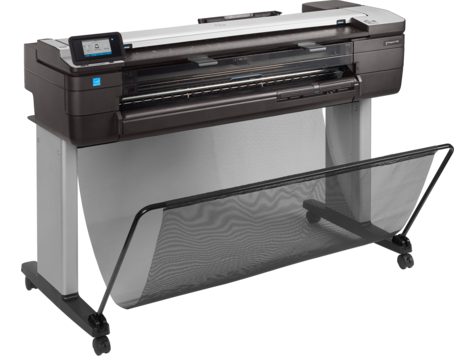

HP DesignJet T830 36-in Multifunction Printer (F9A30A)

Functions:

Speed specifications:

Print time line drawing (economode, A1 plain paper):

25 sec/page

Print speed line drawing (economode, A1 plain paper):

82 A1 prints per hour

Linear scan speed:

Up to 3.81 cm/sec (color, 200 dpi)

up to 11.43 cm/sec (grayscale, 200 dpi)

Memory specifications:

Memory:

1 GB

Internal Storage:

None

Technical specifications:

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi

Print technology:

HP Thermal Inkjet

Number of print cartridges:

4 (cyan, magenta, yellow, matte black)

Ink types:

Dye-based (C, M, Y)

pigment-based (mK)

Non-printable area (cut-sheet):

5 x 5 x 5 x 5 mm

Guaranteed minimum line width:

0.07 mm (ISO/IEC 13660:2001(E))

Line accuracy:

±0.1%

Maximum optical density (black)

8 L* min/2.10 D

(With HP Premium Instant Dry Photo Gloss media with Original HP inks.)

Scan resolution, optical:

Up to 600 dpi

Enhanced scanning resolution:

600 dpi

Scanner type:

Sheetfed, CIS (Contact Image Sensor)

Scan size, maximum:

914 mm x 2.77 m

Scan size, minimum:

127 x 127 mm

Copy reduce / enlarge settings:

50 to 400%

Copies, maximum:

Up to 99 copies

Bit depth:

24-bit/8-bit

Paper handling:

Finished output handling:

Sheet feed

roll feed

input tray

media bin

automatic cutter

Media types:

Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media weights, recommended:

60 to 280 g/m² (roll/manual feed)

60 to 220 g/m² (input tray)

Media sizes standard (metric rolls):

210 to 914-mm wide sheets

279 to 914-mm rolls

Media sizes, custom:

Input tray: 210 x 279 to 330 x 482 mm

manual feed: 330 x 482 to 914 x 1897 mm

roll: 279 to 914 mm

Roll external diameter:

100 mm

Media thickness:

Up to 11.8 mil

Connectivity:

HP ePrint capability:

Yes

Printing path:

Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome app for Chrome OS

Connectivity, standard:

Gigabit Ethernet (1000Base-T)

Wi-Fi 802.11b/g/n

Wi-Fi Direct

USB Type-A host port

Print languages:

TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL, URF

Power and operating requirements:

Power consumption:

35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

Operating temperature range:

5 to 40ºC
