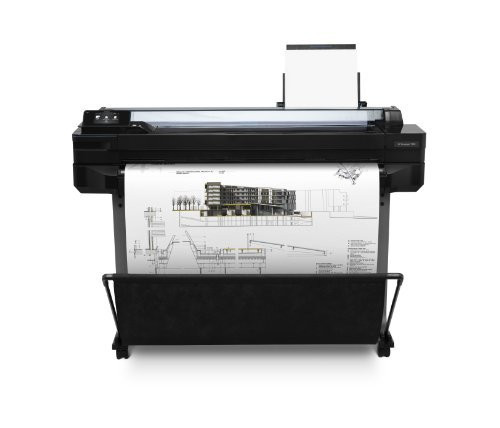

HP Designjet T520 36-in Printer (CQ893A)



Functions
Print



Mechanical print time, b&w line drawing, draft mode, plain
70 D prints per hour



Mechanical print time, line drawing, economode, plain
70 D prints per hour



Resolution (black)
Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected



Resolution (color)
Up to 2400 x 1200 optimized dpi



Print Technology
HP Thermal Inkjet



Number of print cartridges
4 (cyan, magenta, yellow, black)



Compatible ink types
Dye-based (C, M, Y); pigment-based (K)



Print languages
HP-GL/2, HP-RTL, JPEG, CALS G4



Mobile Printing Capability
Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.



Connectivity, standard
Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi



Connectivity, optional
Compatible HP Jetdirect print servers



Network ready
Standard



Minimum system requirements
Mac OS X v 10.6: Mac computer with Intel® Core™ Processor; 1 GB RAM; 2 GB available hard disk space
Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM (32-bit) or 2 GB RAM (64-bit); 1 GB available hard disk space; Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM; 1 GB available hard disk space; Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz); 512 MB RAM; 1 GB available hard disk space



Compatible operating systems
Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Citrix XenApp; Citrix XenServer



Memory, standard
1 GB



Memory, maximum
1 GB



Print speed, color (draft)
Mechanical printing time.



Hard disk
None



Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in



Guaranteed minimum line width
0.0028 in (ISO/IEC 13660:2001(E))
Line accuracy
±0.1%



Maximum optical density (black)
8 L* min/2.10 D



Finished output handling
Sheet feed; roll feed; input tray; media bin; automatic cutter



Media sizes supported
Input tray: A4, A3; manual feed: A2, A1, A0



Media sizes, custom
Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 36 x 74.7 in; roll: 11 to 36 in



Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)



Media sizes, standard
8.3 to 36-in wide sheets; 11 to 36-in rolls



Roll maximum output
150 ft



Roll external diameter
3.9 in



Media thickness
Up to 11.8 mil



Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max



Power consumption
< 35 watts (printing), < 0.3 watts (standby)



Operating temperature range
41 to 104ºF

Mechanical print time, US D color image, best mode, glossy
11.4 min/page



Mechanical print time, US D color image, normal mode, glossy
9.1 min/page



Mechanical print time, US D color image, draft mode, coated
1.1 min/page



Mechanical print time, US D color image, normal mode, coated
3.8 min/page



Mechanical print time, color line drawing, draft mode, plain
35 sec/page



US D color line drawings/hr, draft mode, plain
70 D prints per hour
